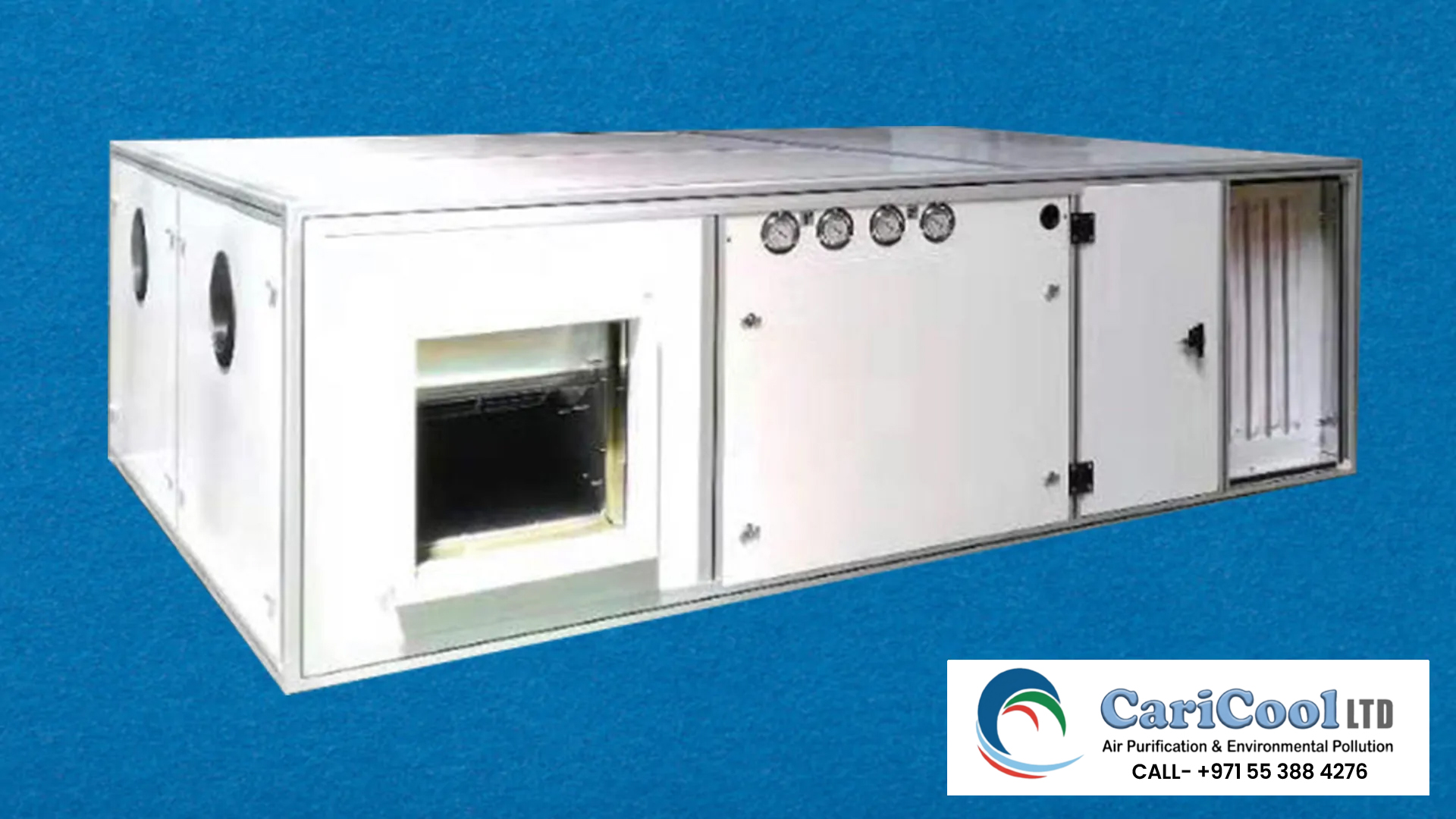

FAHU Cleaning System Manufacturing Dubai - High Rise Buildings
Fresh Air Handling Unit (FAHU) Cleaning System Manufacturing in Dubai
Engineered Fresh Air Solutions for Modern Commercial Spaces
CariCool Limited UK is a recognized company for FAHU cleaning system manufacturing Dubai, delivering high-performance systems designed to ensure continuous fresh air circulation, temperature control, and exceptional indoor air standards. Our FAHU system for high-rise building Dubai is engineered to meet the demanding requirements of commercial kitchens, shisha cafés, restaurants, and high-rise buildings in Dubai, ensuring optimal performance, hygiene, and compliance with environmental regulations.
What is a Fresh Air Handling Unit (FAHU)?
A Fresh Air Handling Unit (FAHU) functions as an essential system element in contemporary HVAC systems, which serve to provide fresh outdoor air directly into building spaces.
- Deliver completely untainted and filtered fresh air
- Provide synchronized airflow together with proper ventilation systems
- Regulate temperature and humidity levels while maintaining air quality standards
- Enhance indoor air quality together with occupant’s comfort
CariCool’s is an FAHU cleaning system manufacturing Dubai company built with advanced filtration, cooling, and heat recovery technologies, making them energy efficient.
Advanced FAHU Cleaning System Manufacturing Dubai
CariCool offers an FAHU system for high-rise building Dubai that operates to improve system efficiency while decreasing their upkeep needs.
Advantages:
- Automatic coil and filter cleaning
- Reduced maintenance downtime
- Improved system lifespan
- Consistent air quality performance
- Enhanced hygiene for sensitive environments
Technical Specifications & Features
Our FAHU units are equipped with advanced components to ensure superior functionality:
- Supply Air: 2400 CFM (R410-A)
- Extract Air: 3000 CFM
- Suitable for approximately 40–45 occupants
- Pre-Filter Aluminum G4

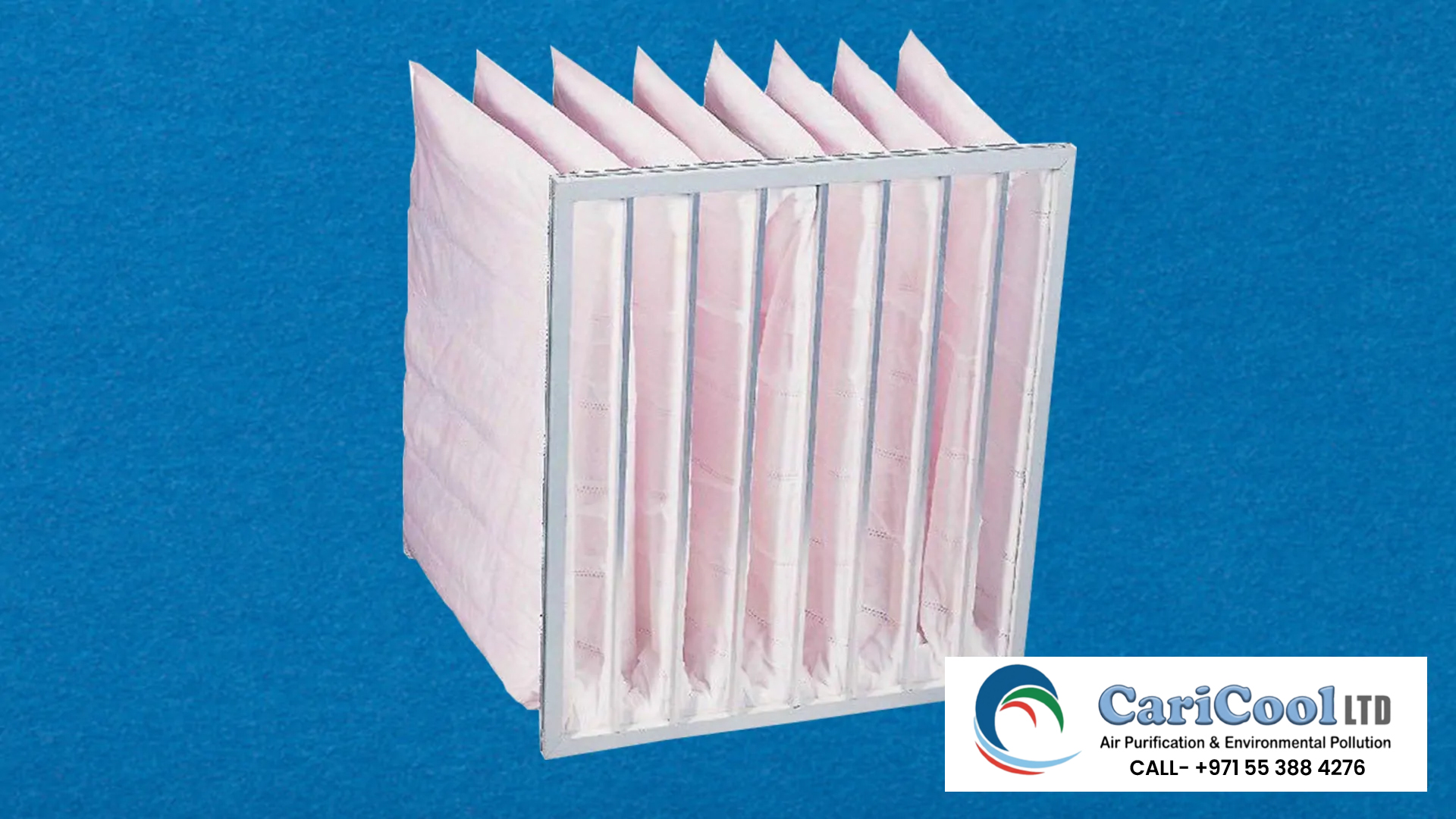

- Multi-stage filtration (G4 + F7 + Sensor)
- UV Lamp (Philips) for germ and virus control
- Electrostatic air purification support
- High-efficiency evaporator (6 rows)
- Integrated dehumidifier (3 rows)
- Dual condensers (8 rows each)

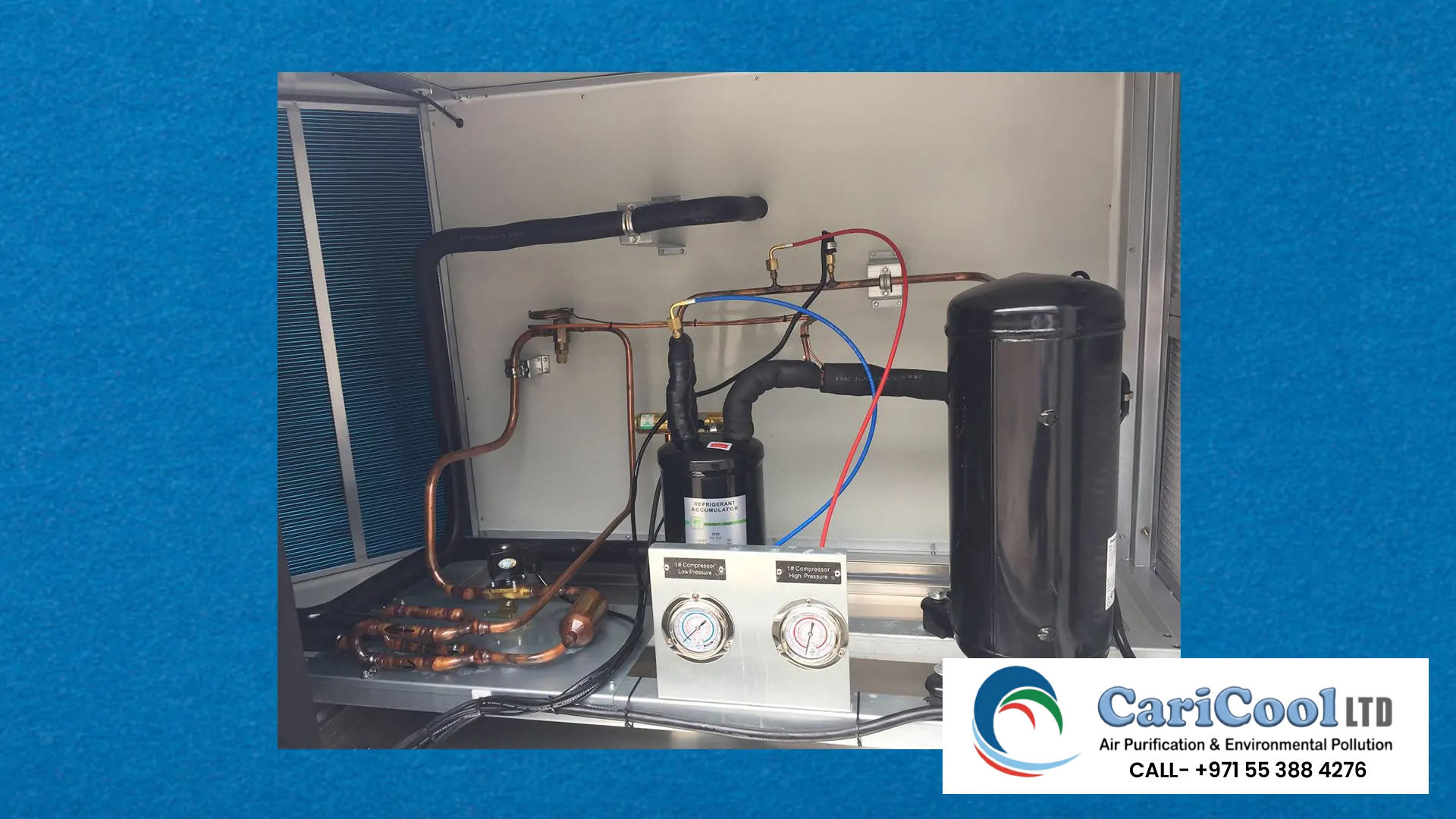

- Built-in heat pump system
- Heat recovery system
- U-type heat pipe (R134)
- Optimized for saving electricity bills using FAHU
- Double skin body (50mm insulation)
- Heavy-duty steel base frame
- Compact design (2500 x 2000 x 900 mm)
- Unit weight: approx. 900 kg
- Supply & extract dampers
- High-efficiency supply and extract fans
- ESP static pressure: 300 Pa
- Robust industrial-grade components
Why Choose CariCool FAHU Systems?
- Customized Engineering Solutions
Building a custom FAHU system for high-rise building Dubai that matches their particular requirements for both construction and operational functions - Energy Efficiency & Cost Savings
To achieve substantial reductions in electricity usage - Advanced Air Purification Technology
Provides with safe and clean indoor air - Ideal for High-Demand Environments
Perfect for shisha cafés, kitchens, and high-rise buildings - End-to-End Project Delivery
Complete commissioning of the systems, from start to finish - Compliance with UAE Standards
Built to meet local regulations and environmental requirements
Air Handling Unit (AHU) Systems
- Heating, cooling, and air circulation
- Air filtration and humidity control
- Integration with full HVAC ducting systems
- Commercial kitchens
- Restaurants and cafés
- Shisha lounges
- Large commercial and industrial facilities
- High-performance blowers
- Multi-stage filtration systems
- Cooling and heating coils
- Sound attenuators for noise control
Upgrade your facility with a next-generation FAHU system for high-rise building Dubai and an AHU that delivers performance, longevity, and energy efficiency.
If the 27 Features are not available in FAHU the unit Called ERV or HRV & 2000cfm Unit size 4 m²
1. FAHU for 44 person sitting | 15. Pre-Filter Aluminum G-4 |
2. Extract Fan 5.5 Kw | 16. G-4 + f-7 Filter + Sensor |
3. Supply Fan 4 Kw | 17. Evaporator 6 Rows |
4. Supply Air 2400 CFM – R410-A | 18. Dehumidifier With 3 Rows |
5. ESP Static Pa 300 | 19. Condenser 2 Nos 8 Rows |
6. Size 2500 x 2000 x 900 | 20. Dampers Supply and Extract |
7. Extract Air 3000 CFM | 21. UV Lamp Philips |
8. Body Double Skin 50mm | 22. Clean Germs air dust & Virus |

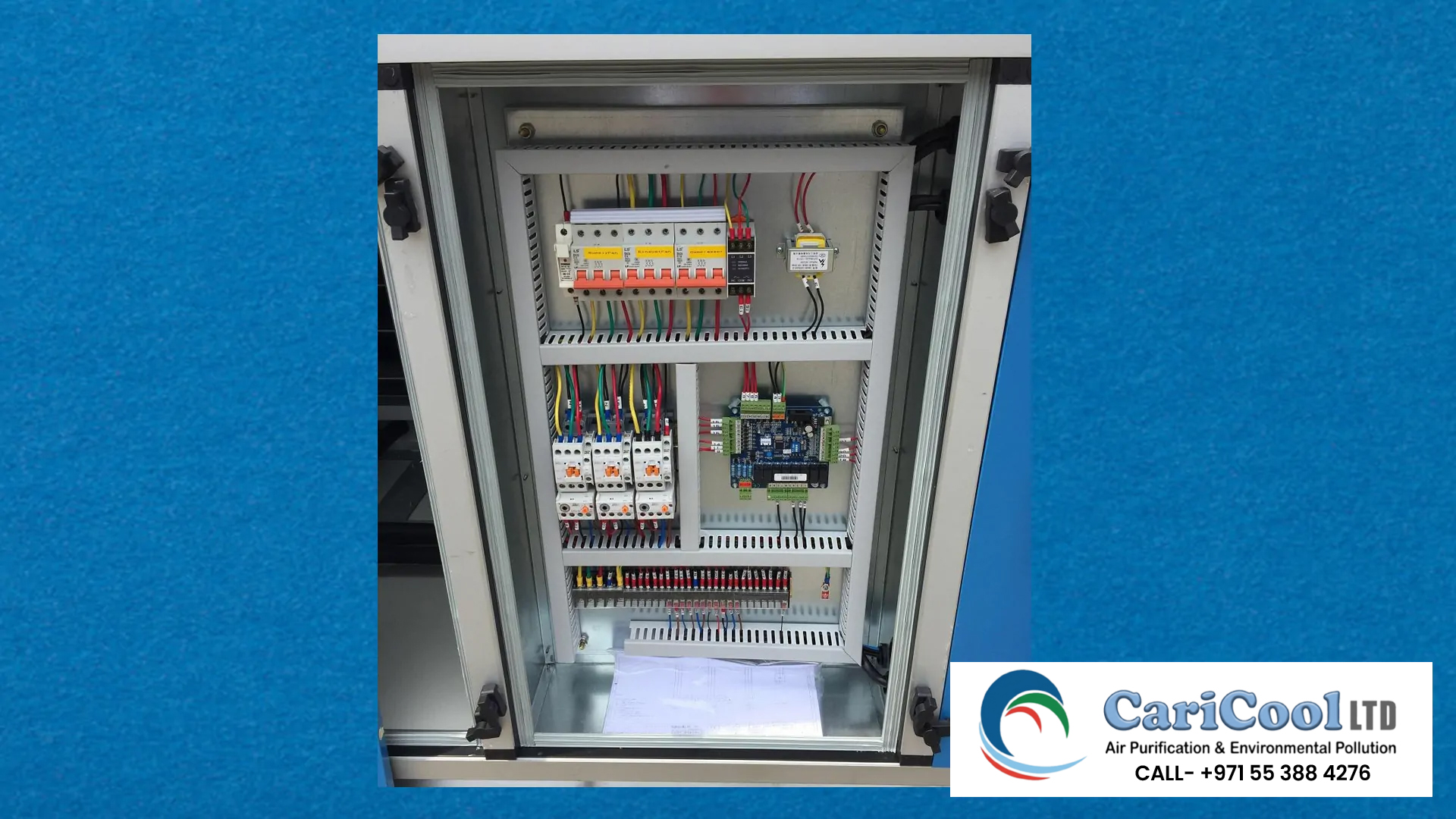

9. Heat Pump | 23. Metal Control + UV Switch |

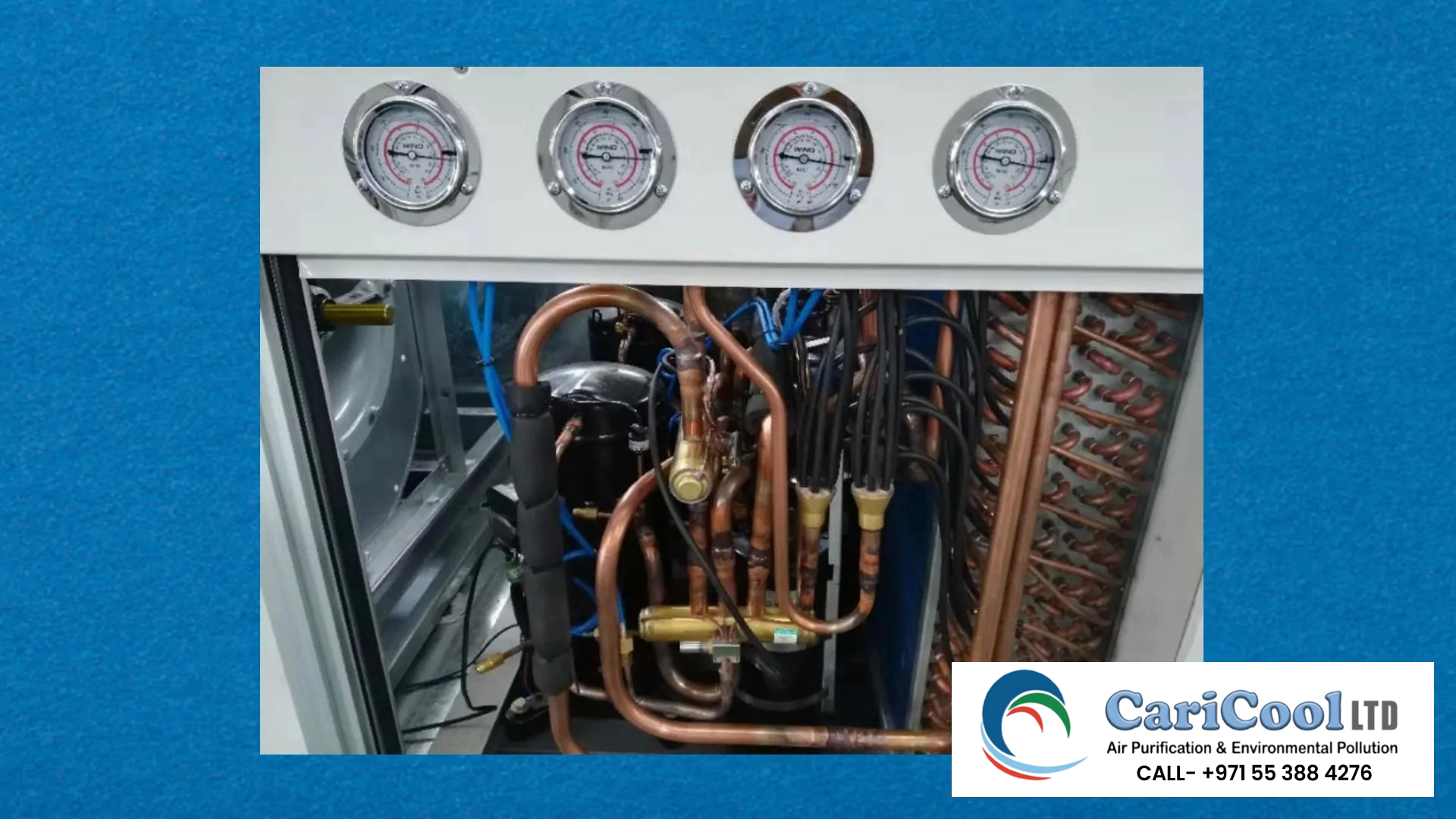

10. U- Type Heat Pipe R-134 | 24. Display Low & High Gauge |
11. Unit Weight 900 kg | 25. Unit 380V/3PH/50HZ |
12. Cooling 3.8 Kw 2 Nos 7.5 Tr | 26. Electrical Load 17.1 Kw + – |
13. Our Unit Dehumidifier | 27. Unit Steel Base Frame |
14. Heat Recovery |

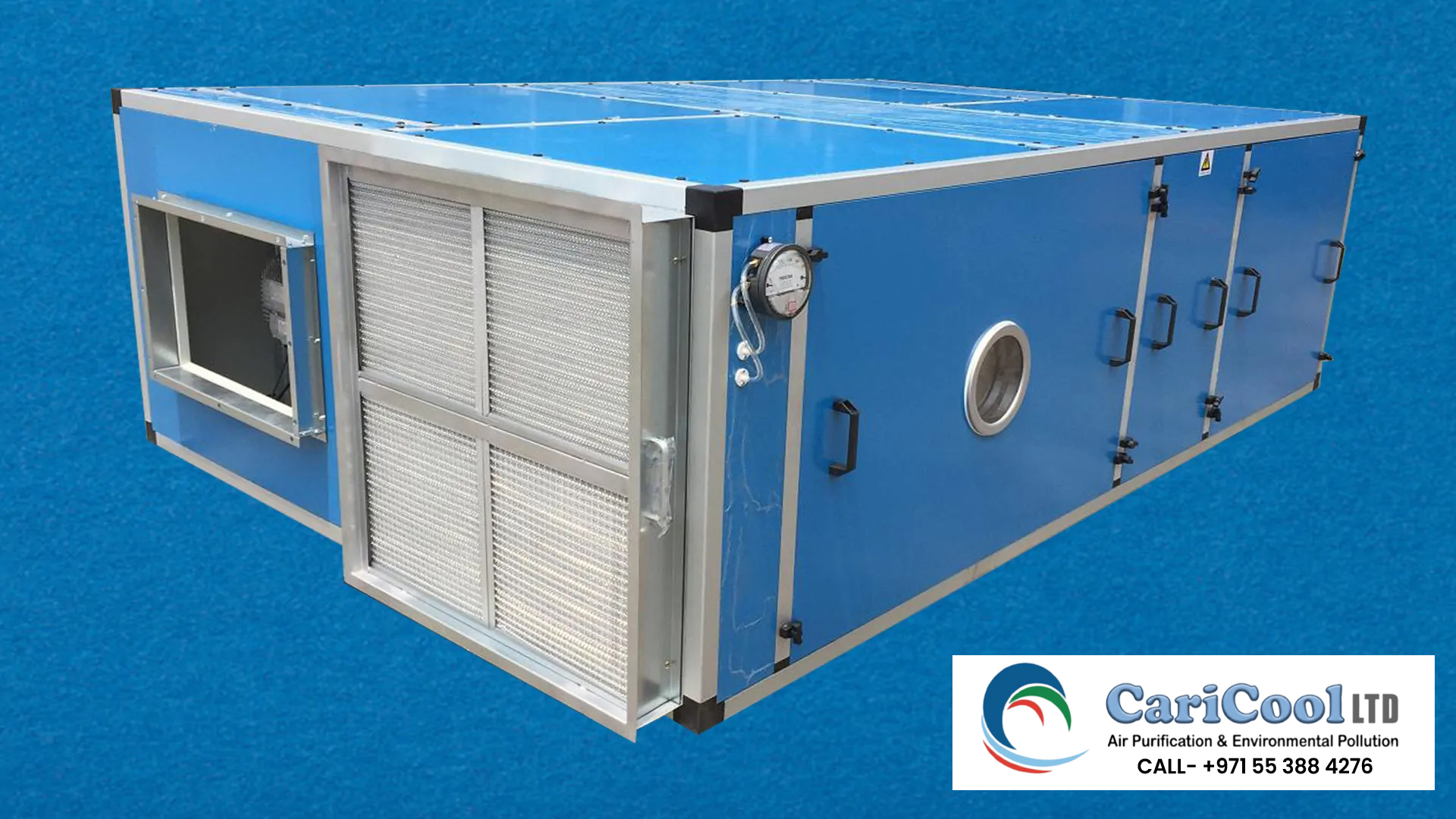

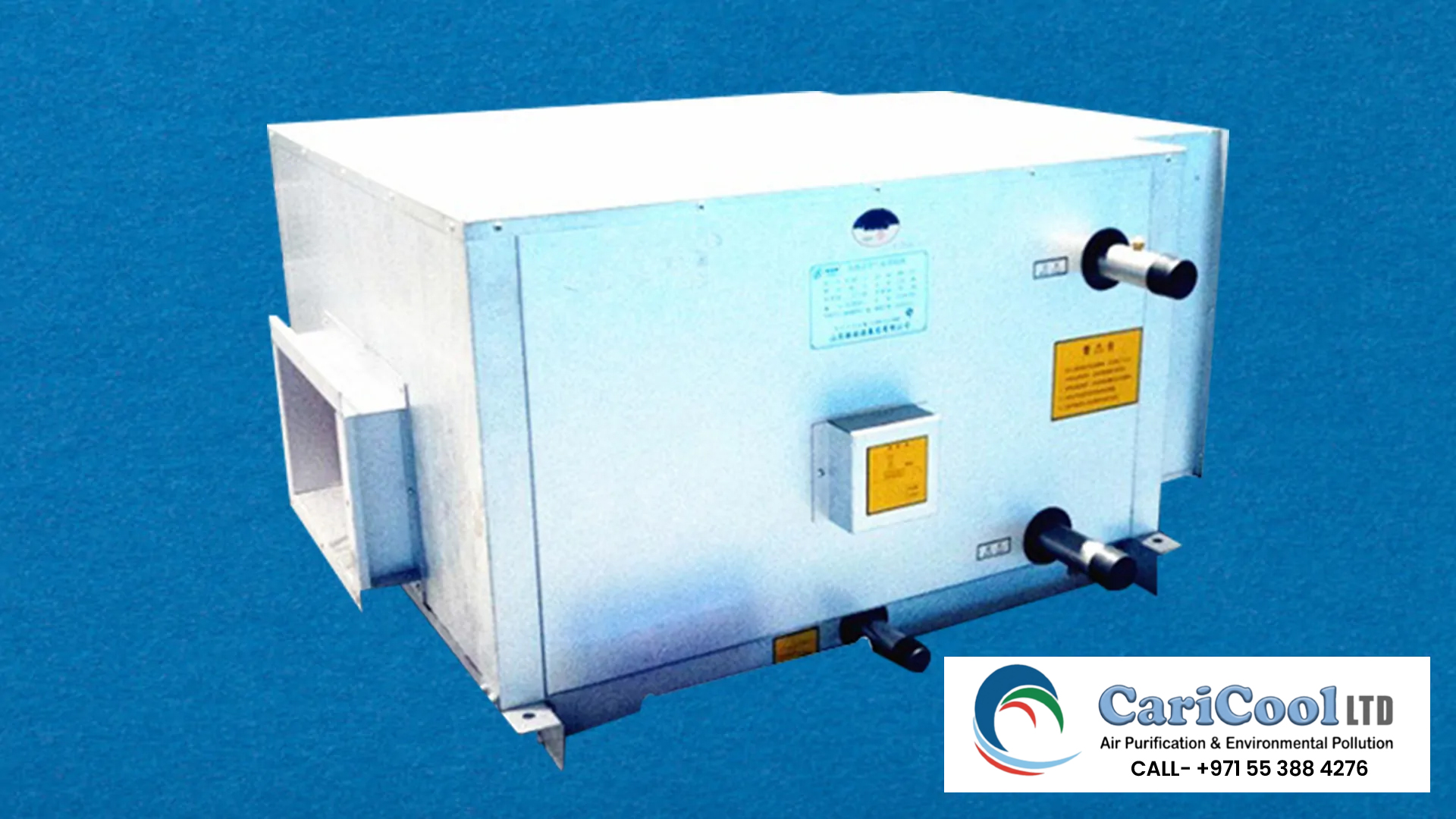

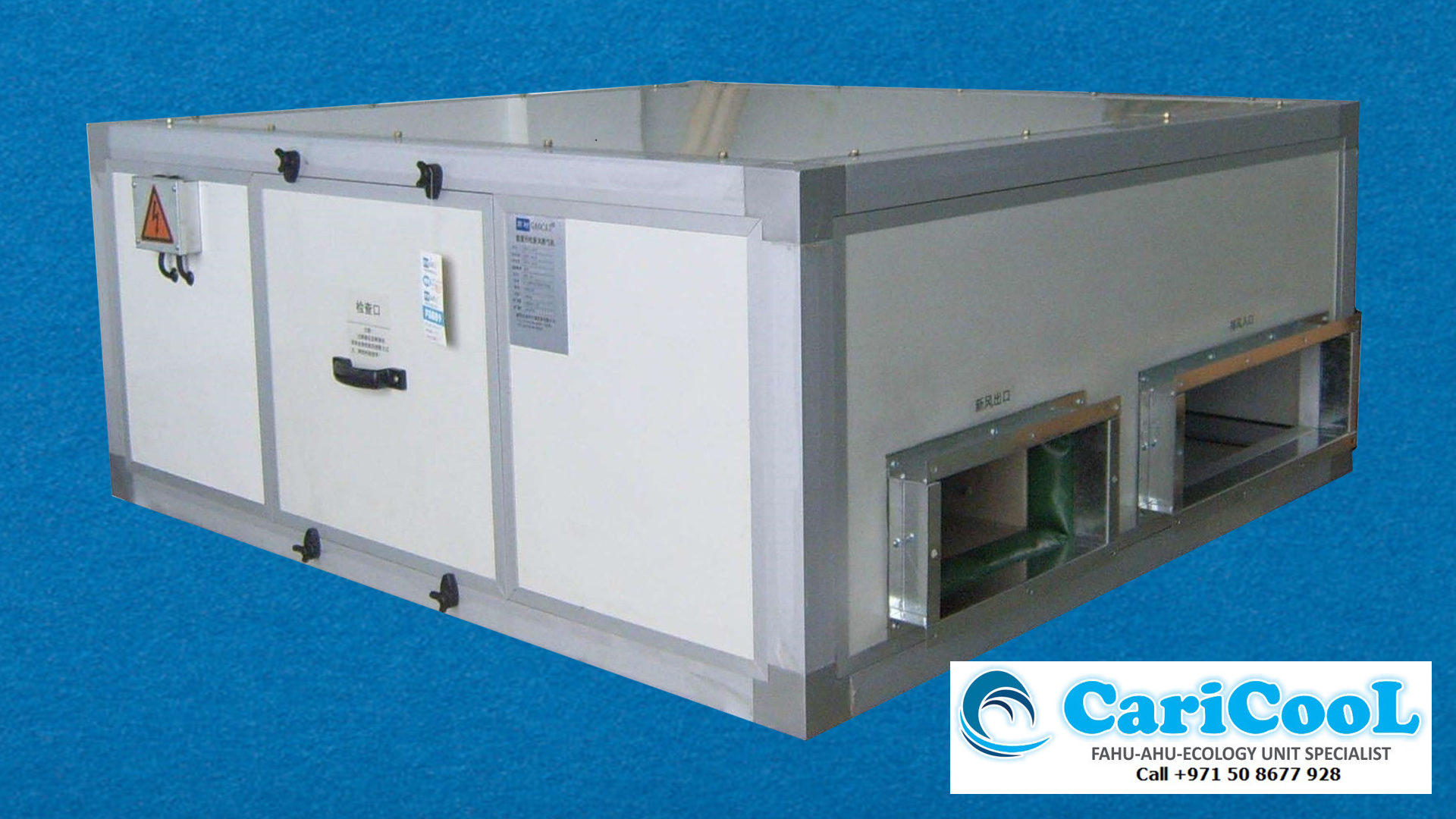

AIR HANDLING UNIT (AHU)

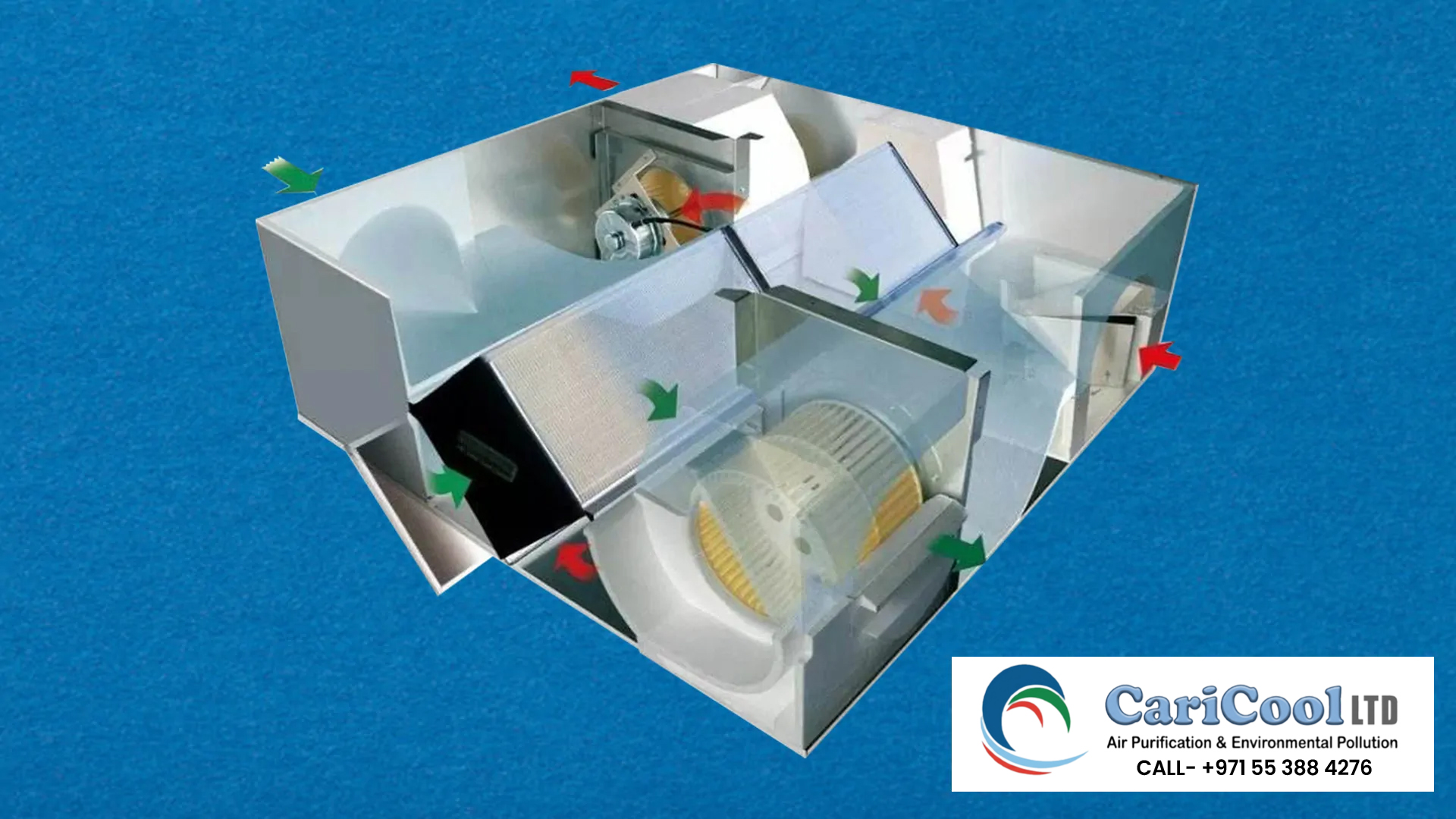

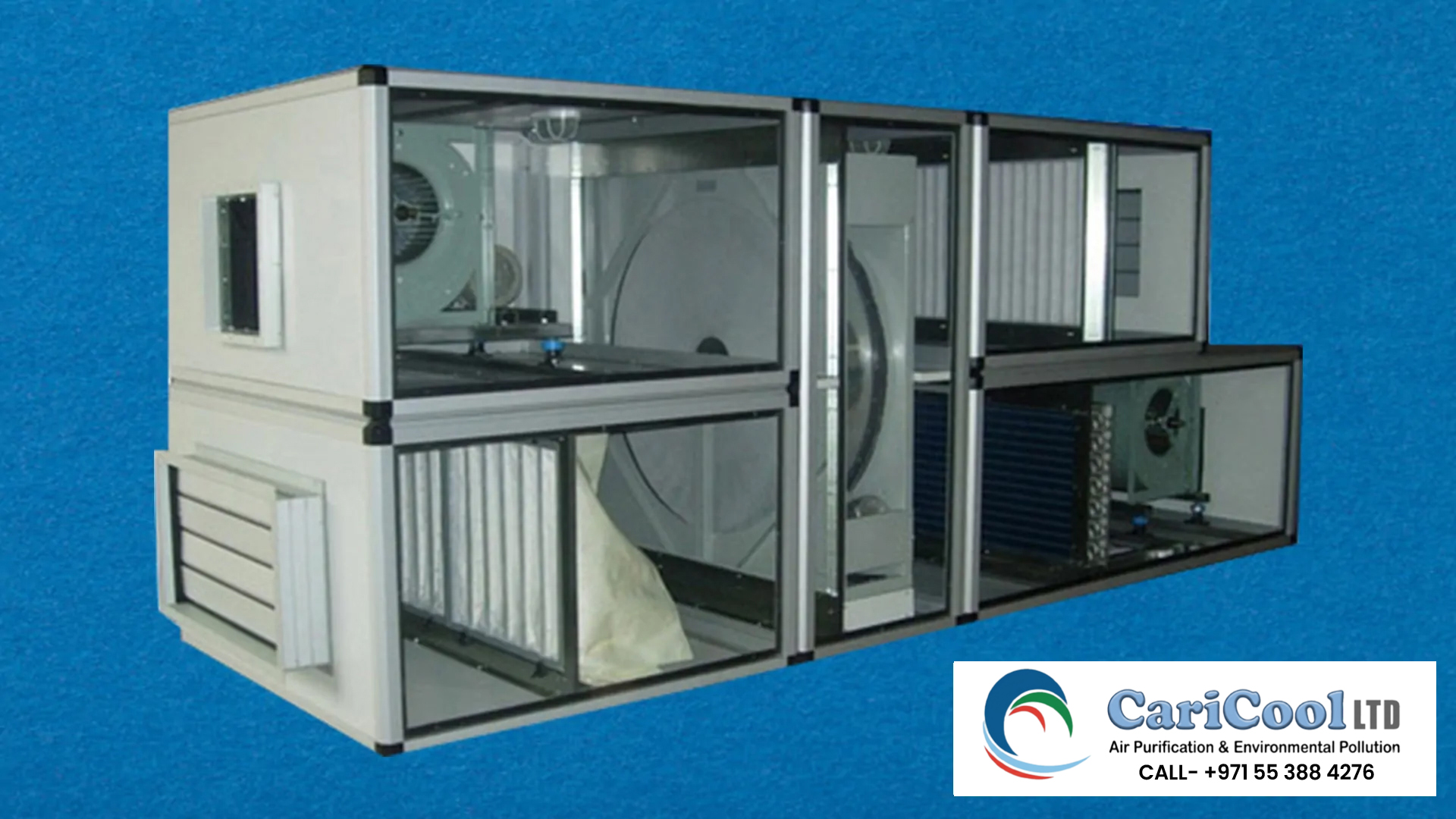

(AHU) is a machine that handles heats, cools, cleans & humidifies and circulates airflow in a commercial kitchen, restaurant, cafe or shisha cafe. AHUs are components of complete (HVAC) systems. AHUs are large metallic boxes comprising of a blower, filter racks, sound Attenuators, and cooling and/or heating coils. Connected to the HVAC’s duct work, AHUs are installed inside and outside of buildings, with the rooftop being common for the latter.installation work at the yard. The heat exchangers, cooling coils and evaporators can be delivered in any type of materials by customer demands.
